Tamiya

Product Code: TAM58707

Availability: Out of stock

£456.00
Description

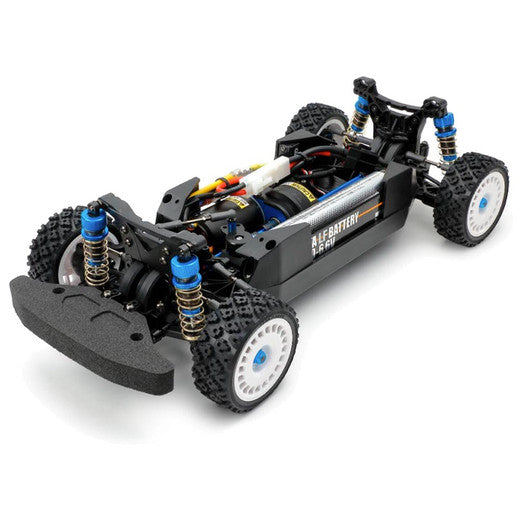

This shaft-driven 4WD chassis kit features a front midship motor and transmits power from the spur gear in the center via identical length front and rear long propeller shafts, which allows running on surfaces from on-road to flat dirt. 39T differential gears front and rear, and one setup option 40T differential gear are included, facilitating changes to drive balance. It features optimum balance and a slim chassis, plus 4-wheel independent double wishbone suspension with aluminum-cylinder long oil dampers.

Featured Components
Drivetrain: ●Full ball bearings ●Aluminum propeller shafts (front/rear) ●Oil-filled gear differentials (front/rear, two 39T and one 40T included) ●Universal drive shafts (front/rear) Suspension: ●Aluminum long dampers (front/rear, with blue caps) ●6-degree caster blocks ●Turnbuckle shaft upper arms Chassis: ●Front bumper with skid angle ●Polycarbonate chassis cover ●Aluminum servo mount ●Hi-torque servo saver

Specifications
★Length: 368mm, width: 180mm ★Wheelbase: 257mm ★Bathtub frame ★Front-midship motor, shaft-driven 4WD ★Oil-filled gear differentials ★3-piece steering tie-rod ★4-wheel independent double wishbone suspension ★Long oil dampers with aluminum cylinders ★Gear ratio (with kit-standard 19T pinion) = 9.58:1 (14 ratios between 10.71:1 and 6.28:1 possible with separately sold pinions) ★Electronic speed controller (ESC) is sold separately.

Separately Required Items
★Body ★Type 540 motor ★2-channel R/C system w/ESC ★R6/AA/UM3 batteries for transmitter ★Battery pack & charger
