3-Achs Hinterkipp-Sattelauflieger

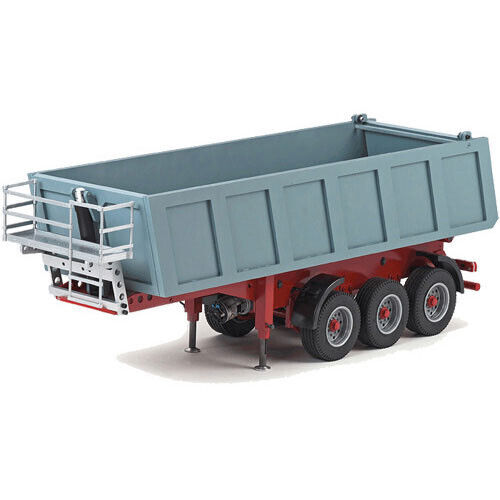

3-axle dumper semi-trailer
Help for the heavy things of the daily routine- the CARSON basin dumper.
The CARSON dumper semi-trailer in scale 1:14.5 is a detailed model of the dumpers, used in the local traffic of construction sites.


Load up your dumper semi-trailer and off you go with a truckload of sand, flint or stones to the next construction site or a stone pit. With the separately availabe dump-mechanics (spindle drive with shaft joint Item 907056) the basin can be dumped respectively the load unloaded. After lowering of the basin, the back wall is secured automatically with a 2-hook locking.


Technical Details:
assembly kit - detailed manual
Basin and back wall made of reinforced PVC, CNC-milled
suspension of GFK with horizontal rods
air-spring dummy (screw springs)
aluminium chassis CNC-milled
12 ball-bearings
6 trailer rims wide
6 wide tires for trailer rims
7-chamber tail lights
license plate mount lightened
plastic fenders with mount
automatical 2-hook back wall locking
aluminium underbody protection CNC-milled
trailer supports mechanically adjustable
support plastic/metal composite construction CNC-milled
hydraulic cylinder dummy
Measurements (L x W x H) 700 x 185 x 235 mm
tire width 25 mm
tire outer - 82 mm
weight 4.600 g
max. load approx. 10.000g
Compatible with all Tamiya tractor trucks.
