1/14 TAMIYA RADIO CONTROL ASSEMBLY KIT - 56318

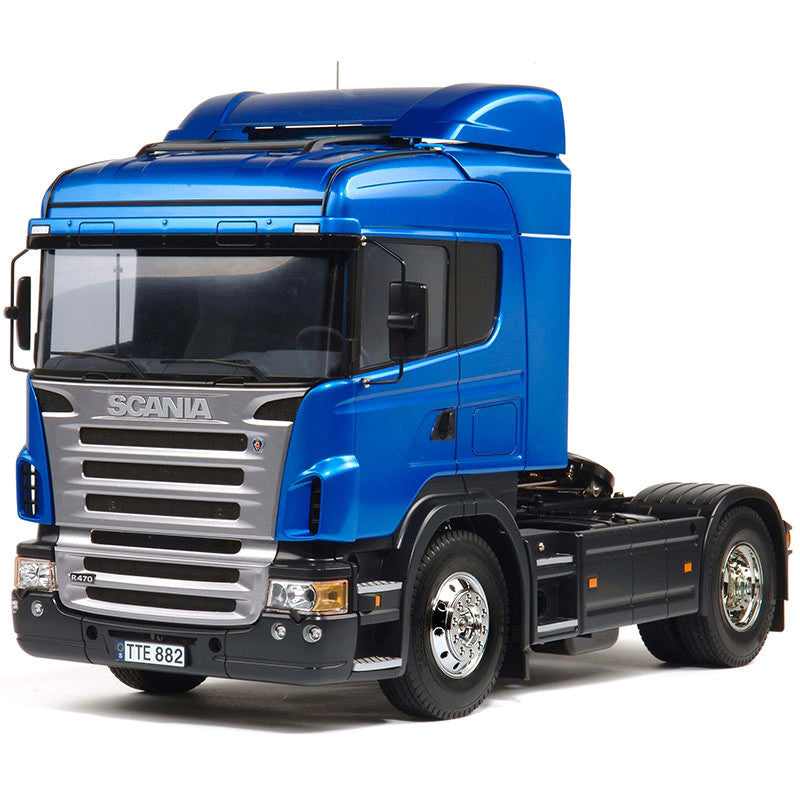

Scania R470 Highline
Swedish manufacturer Scania has a long history of producing exceptional trucks designed for long-haul transport. The company's R-series made its debut in 2004 and quickly built a highly favorable reputation that led to it being given the prestigious International Truck of the Year award in 2005.
Length: 452mm
Width: 187mm
Height: 293mm
Weight Fully-Equipped: about 3,1kg (without multi function unit)
Wheelbase: 272mm
Tread F/R: 156/138mm
Tire Width: F/R both 22mm
Tire Diameter: F/R both 83mm
Chassis Material: Aluminum and polycarbonate plastic
Chassis Shape: Ladder Type Frame
Suspension: Front and Rear Rigid Axle w/Metal Leaf Springs
Caster Angle-F/R: 0deg/0deg
Camber Angle-F/R: 0deg/0deg
Toe Angle-F/R: 0deg/0deg
Damper: F/R Aluminum Dummy Dampers
Drive train: 2-axle
Transmission: 3-gear transmission (gear shifting operated via transmitter)
Gear Ratio: 1st gear 32.49:1, 2nd gear 17.76:1, 3rd gear 10.66:1
Diff. gear system: F/R Bevel Gear Diff
Engine: Electric 540
Body Type: Styrene(plastic)
Required:
4-channel system is recommended for potential future options and 3-speed operation.
7.2V battery and charger
ESC (unless you are using MFC Unit #56511)
